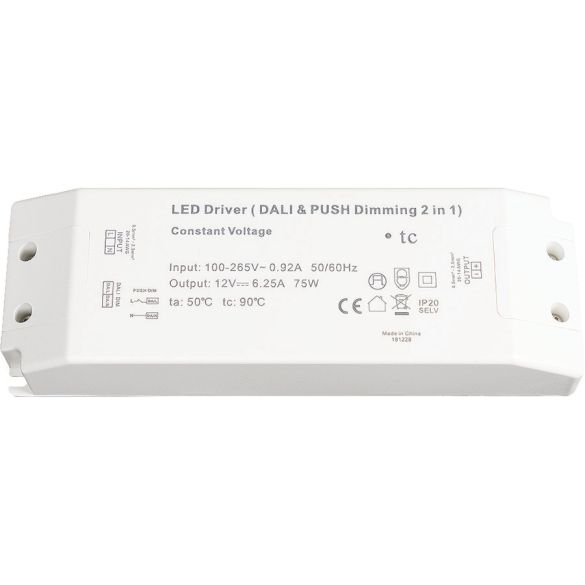

75W DALI & Push Dimmable LED Driver

ATMOS-DALI-*-75-20
  • Constant voltage/PWM output
  • DALI & Push dimming function
  • AC input: 100 - 265v AC
  • Built-in active PFC function
  • Efficiency up to 87%
  • Over Temperature Protection: 100°C± 10°C
  • Cooling by free air convection
  • IP20 design for indoor installation
  • Suitable for intelligent LED lighting

Specifications

AC Current (Max.):
0.55A
Frequency Range:
47 - 63Hz
Full Load Efficiency (Typ.):
87% / 86%
Input Voltage:
  • 100 - 265v AC
Inrush Current:
56A (Twidth=260μs 230v AC)
IP Rating:
  • IP20
Leakage Current:
< 0.50mA
Load Regulation:
±2%
Output Current:
  • 3.12A
  • 6.25A
Output Voltage:
  • 12v DC
  • 24v DC
Power Factor:
PF>0.95/230v AC (Full Loading)
Rated Power:
  • 75W
Size:
180 x 60 x 35mm
Voltage Tolerance:
±0.5%
Working Temperature:
-40°C to +60°C
UOM:
EA
