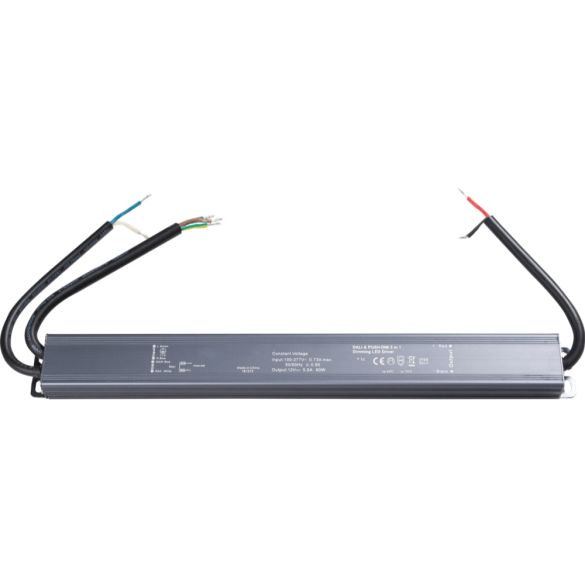

60W Slimline DALI & Push Dimmable LED Driver

ATMOS-SLIMDALI-*-60-66
  • Slimline constant voltage driver, flicker free
  • AC input: 100 - 240v AC / 100 - 277v AC
  • Built in active PFC function, >0.98
  • Efficiency up to 88%
  • Dimming range: 0-100%
  • Short Circuit Protection: Shut down o/p voltage, re-power onto recover after fault condition is removed
  • Over Loading Protection: <120%, Hiccup mode, recovers automatically after fault condition is removed
  • Over Temperature Protection: 100°C ±10°C, re-power onto recover
  • Dimming function: Built in DALI interface. Dimming function conforms to DALI Protocol IEC62386

Specifications

AC Current (Max.):
0.9A @100v AC
Full Load Efficiency (Typ.):
86% / 88%
Input Voltage:
  • 100 - 240v AC
  • 100 - 277v AC
Inrush Current:
34A (twidth=121μs) @230v AC
IP Rating:
  • IP66
Output Current:
  • 2.5A
  • 5A
Output Voltage:
  • 12v DC
  • 24v DC
Power Factor:
PF >0.98/120v AC
Rated Power:
  • 60W
Size:
300 x 32 x 23mm
Voltage Tolerance:
< 500mV
Working Temperature:
-40°C to +60°C
UOM:
EA
