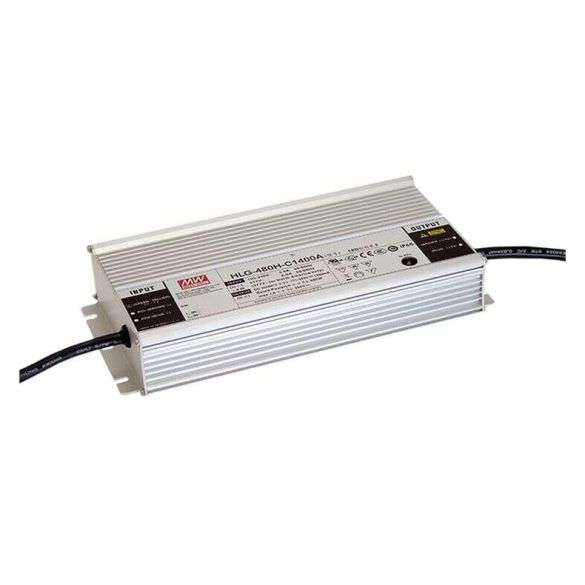

A 480W AC/DC LED driver featuring the dual mode constant voltage and constant current output. The LED driver operates from 90~305VAC. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. The LED driver is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
- Constant Voltage and Constant Current mode output
- Metal housing with Class I design
- Built-in active PFC function
- IP67 rating for indoor or outdoor installations
- 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance)
- Typical lifetime > 62000 hours
- 7 year warranty
Specifications
Output Specifications
Output Voltage:
24V
Constant Current Region:
12 ~ 24V
Voltage Tolerance:
±1.0%
Output Current:
20A
Rated Power:
480W
Input Specifications
Input Voltage:
90 ~ 305VAC
Frequency Range:
47-63Hz
Inrush Current:
Cold Start 35A (Twidth=1800μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Efficiency (Typ.):
94% / 230VAC
AC Current (Typ.):
2.45A / 230VAC
Leakage Current:
<0.75mA / 277VAC
Power Factor:
PF≧0.98/115VAC, PF≧0.97/230VAC, PF≧0.95/277VAC @ full load
Protection
Short Circuit:
Constant current limiting, recovers automatically after fault condition is removed
Over Voltage:
27 ~ 33V. Shut down output voltage, re-power on to recovery
Over Current:
95 ~ 108%. Constant current limiting, recovers automatically after fault condition is removed
Over Temperature:
Shut down output voltage, re-power on to recovery
Environment
Working Temperature:
Tcase= -40°C to +90°C
Working Humidity:
20 ~ 95% RH non-condensing
Storage Temperature, Humidity:
-40°C to +80°C, 10 ~ 95% RH non-condensing
Temperature Coefficient:
±0.02%/°C (0-60°C)
Vibration:
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
Safety & EMC
Safety Standards:
EN61347-1, EN61347-2-13 independent, EN62384
Withstand Voltage:
I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Isolation Resistance:
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC Emission:
Compliance to EN55015, EN61000-3-2 Class C (@ load≧50%); EN61000-3-3
EMC Immunity:
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
Other Specifications
IP Rating:
IP67
Size:
262 x 125 x 43.8 mm
UOM:
EA
Weight:
2.8 kg
