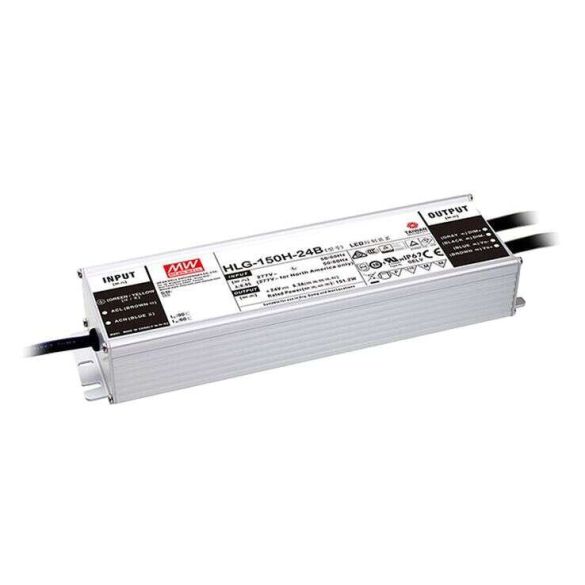

24V 150W 0/1-10V Dimmable Constant Voltage LED Driver

ATMOS-24-150-110D-66

A 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. The LED driver operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 24V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40°C ~ +90°C case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. The LED driver is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

  • Constant Voltage and Constant Current mode output
  • Metal housing with Class I design
  • IP67 rating for indoor or outdoor installations
  • 3 in 1 dimming function (1~10VDC, 10V PWM signal and resistance)
  • Typical lifetime > 62000 hours
  • 7 year warranty

Specifications

Output Specifications

Output Voltage:
24V
Constant Current Region:
12 ~ 24V
Voltage Tolerance:
±1.0%
Output Current:
6.3A
Rated Power:
151.2W

Input Specifications

Input Voltage:
90 ~ 305VAC
Frequency Range:
47-63Hz
Inrush Current:
Cold Start 65A (Twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
Efficiency (Typ.):
93%
AC Current (Typ.):
0.75A / 230VAC
Leakage Current:
<0.75mA / 277VAC
Power Factor:
PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load

Protection

Short Circuit:
Constant current limiting, recovers automatically after fault condition is removed
Over Voltage:
28 ~ 34V. Shut down o/p voltage with auto-recovery or re-power on to recovery
Over Current:
95 ~ 108%. Constant current limiting, recovers automatically after fault condition is removed
Over Temperature:
Shut down o/p voltage, recovers automatically after temperature goes down

Environment

Working Temperature:
Tcase= -40°C to +90°C
Working Humidity:
20 ~ 95% RH non-condensing
Storage Temperature, Humidity:
-40°C to +80°C, 10 ~ 95% RH
Temperature Coefficient:
±0.03%/°C (0-60°C)
Vibration:
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

Safety & EMC

Safety Standards:
EN61347-1, EN61347-2-13 independent
Withstand Voltage:
I/P-O/P:3.75KVAC, I/P-FG:2KVAC, O/P-FG:1.5KVAC
Isolation Resistance:
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
EMC Emission:
Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧60%); EN61000-3-3
EMC Immunity:
Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)

Other Specifications

IP Rating:
IP67
Size:
228 x 68 x 38.8 mm
UOM:
EA
Weight:
1.15 kg
