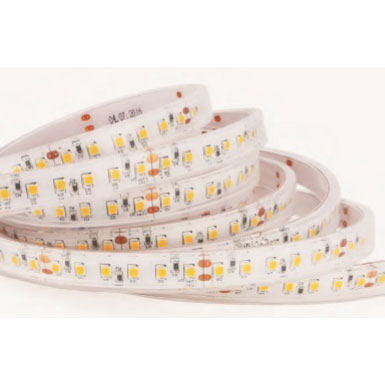

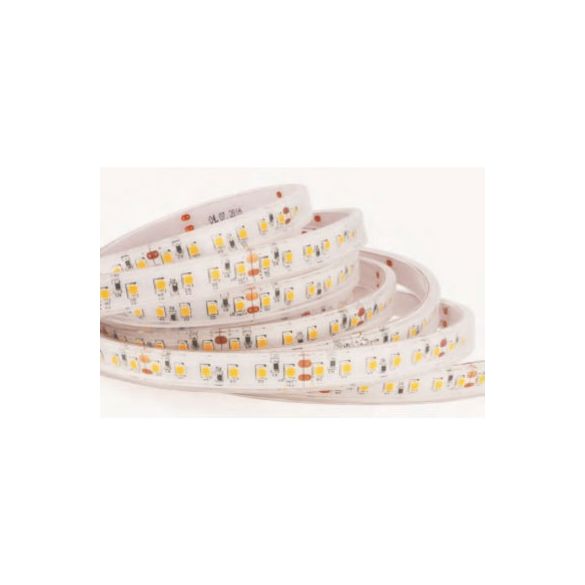

Customized design for long length application up to 50m, with safety 24v DC input voltage, with optional constant voltage, constant current or temperature sensing design.
- Silicon tube has high quality and textured appearance, with high transmittance.
- IP65 high rated protection, no colour shift.
- Light emitting area is wider, due to the concave lens shape of the silicon tube inner part.
- Advanced extrusive silicon tube technology, molding having precise dimensions.
- Using silicon material with strong weather resistance, good properties under high/low ambient temperature, excellent acid and alkali erosion endurance, UV resistant.
- 30,000h long lifespan, CE and RoHS approval.
Specifications
CRI:
- >80
Cuttable:
- 100mm
Height:
- 5mm
IP Rating:
- IP40
- IP65
Lumen Output (per metre):
348 - 360
Lumens per Watt:
70 - 72
Maximum Linear Run:
- 50M
Number of LEDs (per metre):
- 60
SDCM:
< 5
Voltage:
- 24v DC
Watts (per metre):
- 5
Width:
- 12mm
Working Ambient Temperature:
-10°C to +45°C
Colour:
- 2700K
- Cool White 6000K
- Warm White 3000K
UOM:
M
