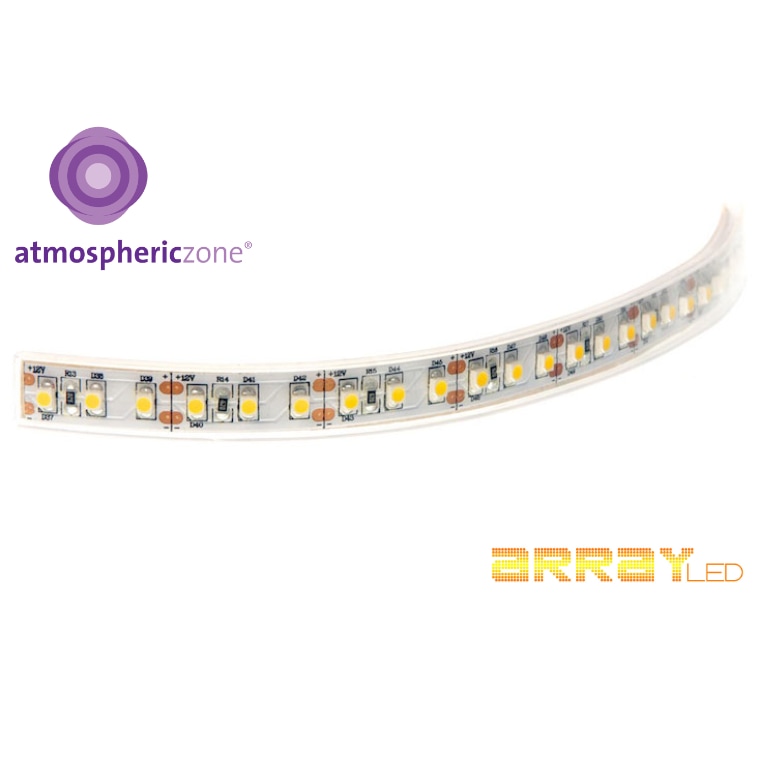

Atmospheric PRO LED Linear Strip and Array LED Strip are ideal for low level light requirements for shadow gap lighting and a huge range of other architectural applications, including signage, landscaping, kitchen and bathroom etc.
High quality Atmospheric PRO and Array Strip are supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces.
Dimmable with appropriate control products. Please see our range of wall units, 1-10, Dali, DMX and mains options.
Please see our range of profiles for heat sinking and installation methods.
- High brightness SMD LEDs
- Cuttable every 25mm (12v DC) and 50mm (24v DC)
- High luminance efficiency and low power consumption
- Long life of up to 50,000 hours
- IP40 and IP65 versions
- 5 year warranty (Atmospheric PRO) and 3 year warranty (Array LED)
* Cuttable every 25mm (12v DC) and 50mm (24v DC)
** Atmospheric PRO LED Linear Strip CRI: >97 / Array LED Strip CRI: >90
Specifications
CRI:
- >90
- >97
Cuttable:
- 25mm
- 50mm
Height:
- 2.2mm
IP Rating:
- IP40
- IP65
Lumen Output (per metre):
330 - 360
Lumens per Watt:
66 - 72
Maximum Linear Run:
- 10M
Number of LEDs (per metre):
- 120
SDCM:
< 3
Voltage:
- 12v DC
- 24v DC
Watts (per metre):
- 5
Width:
- 10mm
Working Ambient Temperature:
-10°C to +45°C
Colour:
- 2100K
- 2400K
- 2700K
- Blue
- Cool White 6000K
- Green
- Natural White 4000K
- Red
- Warm White 3000K
UOM:
M
