20W Pro Strip

x-120-x-20-x-x

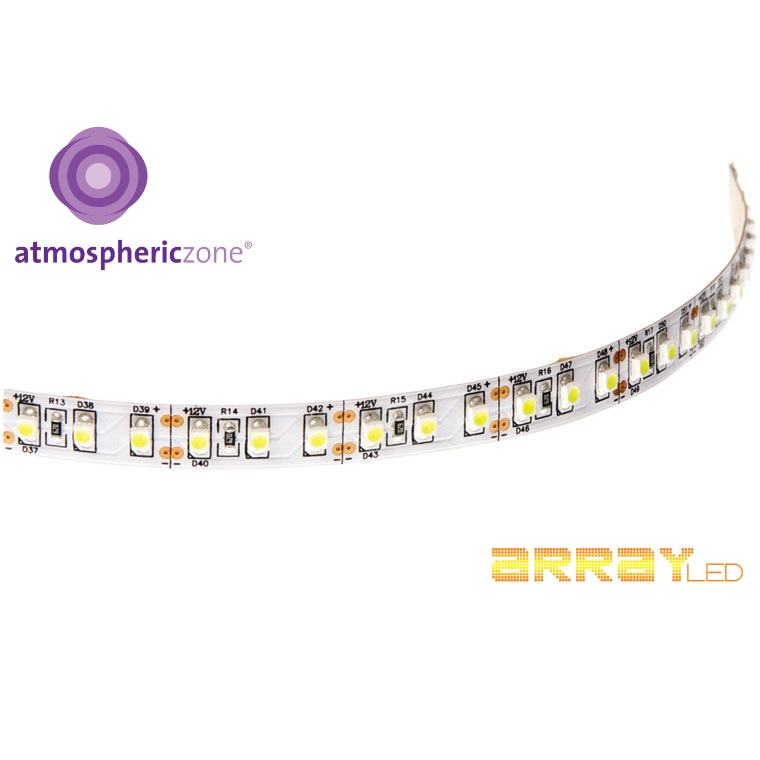

Atmospheric PRO LED Linear Strip 20W and Array LED Strip 20W are super high powered lighting products ideal for any domestic and commercial applications where task or very high levels are required. With 120 high power LEDs per metre they offer very smooth linear runs of lighting and stunning light levels.

High quality Atmospheric PRO and Array Strip are supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces.

Dimmable with appropriate control products. Please see our range of wall units, 1-10, Dali, DMX and mains options.

Heat sinking is essential to maintain the longevity of the product, please select from our comprehensive range or call our sales team for advice.

  • High brightness SMD C1242 LEDs
  • Cuttable every 25mm (12v DC) and 50mm (24v DC)
  • High luminance efficiency and low power consumption
  • Long life of up to 50,000 hours
  • IP40 and IP65 versions
  • 5 year warranty (Atmospheric PRO) and 3 year warranty (Array LED)

* Cuttable every 25mm (12v DC) and 50mm (24v DC)

** Atmospheric PRO LED Linear Strip CRI: >97 / Array LED Strip CRI: >90

Specifications

CRI:
  • >90
  • >97
Cuttable:
  • 25mm
  • 50mm
Height:
  • 2.2mm
IP Rating:
  • IP40
  • IP65
Lumen Output (per metre):
1284 - 1345
Lumens per Watt:
64 - 67
Maximum Linear Run:
  • 5M
Number of LEDs (per metre):
  • 120
SDCM:
< 3
Voltage:
  • 12v DC
  • 24v DC
Watts (per metre):
  • 20
Width:
  • 10mm
Working Ambient Temperature:
-10°C to +45°C
Colour:
  • 2100K
  • 2400K
  • 2700K
  • Cool White 6000K
  • Natural White 4000K
  • Warm White 3000K
UOM:
M
