10W Pro Strip

x-120-x-10-x-x

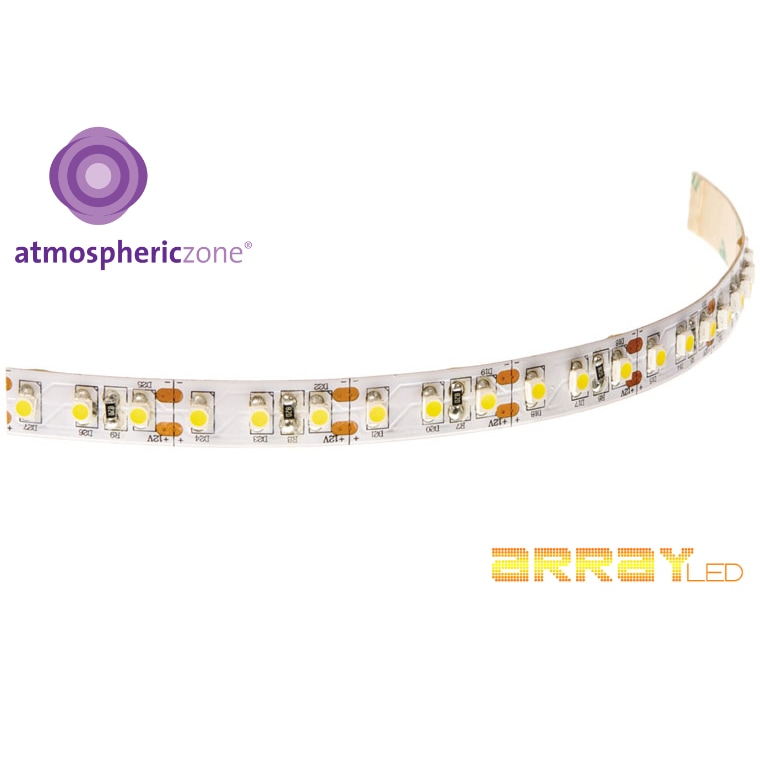

Atmospheric PRO LED Linear Strip 10W and Array LED Strip 10W are ideal for domestic and commercial applications such as shadow gap lighting, decorative, shelving – in fact almost anywhere.Having 120 LEDs per metre, Atmospheric PRO and Array Strip allows close up positioning to walls etc to maintain a smooth, homogeneous linear line of light.

High quality Atmospheric PRO and Array Strip are supplied with 3M backing double sided tape to adhere to clean, grease free non porous surfaces.

Dimmable with appropriate control products. Please see our range of wall units, 1-10, Dali, DMX and mains options.

Heat sinking is essential to maintain the longevity of the product, please select from our comprehensive range or call our sales team for advice.

  • High brightness SMD 3528 LEDs
  • Cuttable every 25mm (12v DC) and 50mm (24v DC)
  • High luminance efficiency and low power consumption
  • Long life of up to 50,000 hours
  • IP40 and IP65 versions
  • 5 year warranty (Atmospheric PRO) and 3 year warranty (Array LED)

* Cuttable every 25mm (12v DC) and 50mm (24v DC)

** Atmospheric PRO LED Linear Strip CRI: >97 / Array LED Strip CRI: >90

Specifications

CRI:
  • >90
  • >97
Cuttable:
  • 25mm
  • 50mm
Height:
  • 2.2mm
IP Rating:
  • IP40
  • IP65
Lumen Output (per metre):
675 - 720
Lumens per Watt:
67 - 72
Maximum Linear Run:
  • 10M
Number of LEDs (per metre):
  • 120
SDCM:
< 3
Voltage:
  • 12v DC
  • 24v DC
Watts (per metre):
  • 10
Width:
  • 10mm
Working Ambient Temperature:
-10°C to +45°C
Colour:
  • 2100K
  • 2400K
  • 2700K
  • Blue
  • Cool White 6000K
  • Green
  • Natural White 4000K
  • Red
  • Warm White 3000K
UOM:
M
