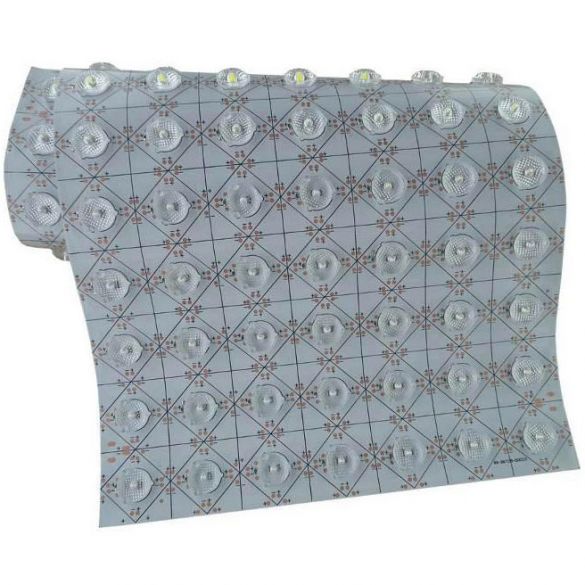

Array Flex LED Sheet - 300 LEDs

ATMOS-AFLS-300-24-*-*-*

Flexible LED Array - Applications include curved surfaces, backlight for advertising signs, stretch ceilings, display panels, plinths.

  • Simple to cut to most shapes
  • CRI > 80
  • Efficiency 100+Lm P/W
  • Cuttable to one LED per square
  • Ultra thin 1mm - easy to cut, flexible
  • Bend to radius of >50mm
  • Option of 160° lens
  • -30°C to 40°C ; Max Tcp 60°C
  • 12 or 24v DC Constant Voltage (application dependent)
  • Lead free soldering
  • CE RoHS FCC
  • >50000 Hours TC <60°, 1=2.5A
  • 3 year warranty
  • Requires additional heat management e.g. fixing to aluminium plate

Specifications

CRI:
  • > 80
IP Rating:
  • IP40
LED Quantity:
300 per Sheet
Size:
500 x 240 x 1mm*
Voltage:
  • 24v DC
Wattage:
  • 36W
  • 69W
Colour:
  • Cool White
  • Natural White
  • Warm White
UOM:
EA
Beam Angle:
  • 120°
  • 160° with lens

Notes

*6mm with lens

  • Beam Characteristics 120°(with lens 160°), Tolerance range for optical data: ±10%. Tolerance range for electrical data ±5%
  • The above table data was tested at room temperature 25°, Cooled by free air convection. LED colour temperature 6000-6500K, CRI>80, Minimum Bending diameter; 50mm
